ATLAS™

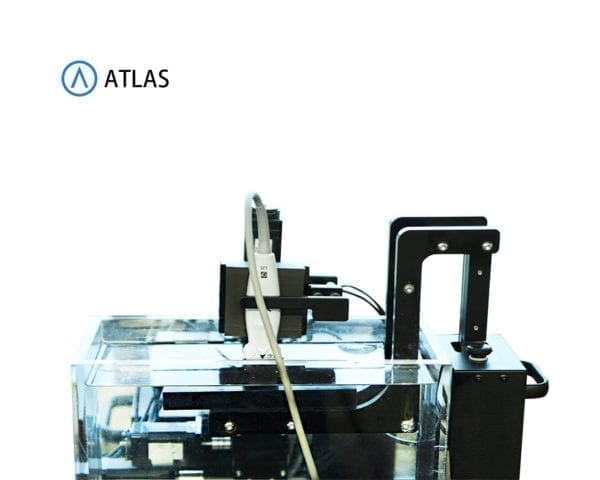

The ATLAS™ Test System was designed by Acertara for diagnostic ultrasound transducer manufacturing and development; including in-process probe testing, quality control, probe production final test, and engineering. A major design goal of ATLAS ™ was the ability to replicate the results of legacy test systems. ATLAS™ is flexible, expandable, and customizable.

Users have the ability to include or exclude operational modules from the final software package such as: re-poling, time-of-flight calculation methods, cross talk, and various other transducer acceptance criteria matrices. ATLAS™ is highly intuitive for both new users or those who have been previously trained to other array test systems.

Register
Category:

User Manual Spec Sheet

  • Physical Dimensions:
    • Height: 4.125
    • Width: 17.125
    • Depth:13.75
    • Weight: 10.45lbs
  • System Components:
    • Main unit
    • Software Installation CD
    • Probe adaptors/adaptors
    • AC power cable
    • USB system cable
    • USB temperature sensor with the extension cable
  • Computer Requirements:
    • Operating system:
    • Windows 7 professional
    • USB 2.0 port (Requires that 2 ports be available)
    • Processor:
    • 1GHz or faster 32-bit (x86) or 64-bit (x64)
    • RAM:
    • 1GB (32-bit)/ 2GB (64-bit)
    • Hard Disk Space:
    • 16GB (32-bit) available; 20GB (64-bit)
    • Resolution:
    • 1280×768 or higher-resolution video adapter and monitor
    • CD-ROM or DVD Drive

Features and Functions:

  • The fundamental features and functions of the ATLAS™ are:
    • Hardware design electronics elements:
      • The ultrasound pulser
      • The ultrasound receiver
      • The impedance measurement module
      • The element selection matrix
      • The data conversion and PC interface
    • Fundamental software elements:
      • Test setup
      • Array Alignment
      • Pulse Echo Measurement
      • Impedance Measurement Module
      • Judgement/Acceptance criteria
      • Results save and database
      • Report Generation

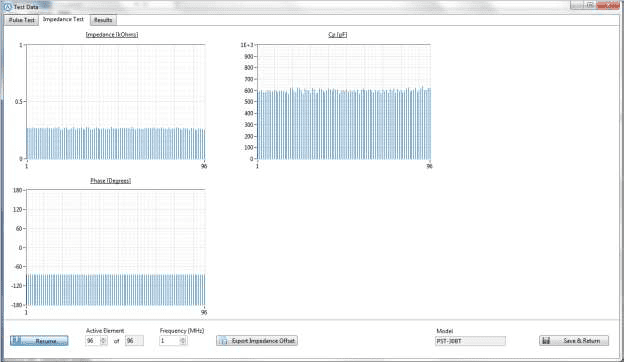

Screen Shots
